COBit150-1.2 Strip, P1.25mm Fine pitch Shelf LED video wall, Super market price sticker, shopping mall UHD strip video screen solutions

Key Features:

● High brighness 1,000 nits to 2,200 nits;

● Custom made panel size: 55'', 65'', 75'';

● Custom made shape, Circle, corner, round;

● Energy-saving, Long Lifespan, Lower heating.

Applications:

COBit Pro Ultra high definition LED video wall design for brand showroom, shopping mall, chain stores, hospital, pharmacy HD advertising screen.

Parameters

Key Features:

● High brighness 1,000 nits to 2,200 nits;

● Custom made panel size: 55'', 65'', 75'';

● Custom made shape, Circle, corner, round;

● Energy-saving, Long Lifespan, Lower heating.

Applications:

COBit Pro Ultra high definition LED video wall design for brand showroom, shopping mall, chain stores, hospital, pharmacy HD advertising screen.

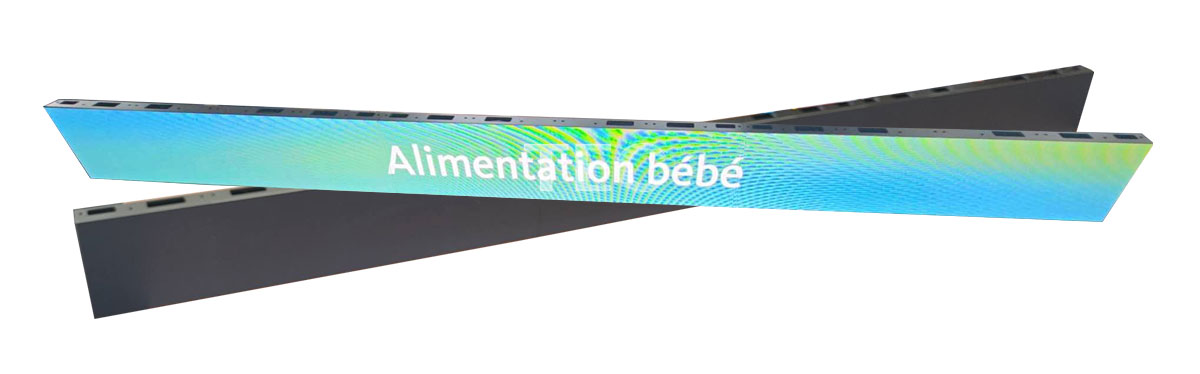

P1.25mm Strip Shelf Fine Pitch COB LED Video Wall

The COBit150 (Chip on board) Strip series Ultra HD Shelf LED video wall is designed for indoor & semi-outdoor high brightness UHD commercial LED video wall applications, such as shopping mall, retail store, chain store,super market. The key feature of COBit150 Strip is flexible length from 2025mm to 337.5mm, even more the height can be 112mm, 150mm optional. The video panel with pixel pitch ranging from 0.78mm to 1.5mm deliver highest definition video performance even at small size, and the whole series come with all the features of flip COB to maximize vivid video effects,such as 10,000:1 contrast, 15 bits, 170° view angle. The lower heating COB modules without wires ensures the highest reliability and longer lifespan of video wall.

Flexible size for creative design

The strip length is from 2025mm to 337.5mm, and high from 112mm, 150mm optional, which allows you to make any size long or high format video wall.

Semi-outdoor brightness

The LED video wall designed with common cathode technology which has 1,000 & 2,000 nits brightness for outdoor option, it is powerful bright for semi-outdoor applications.

Powered by flip COB Technology

The modules with chip-on-board has the strongest protection, it is anti-crash, front IP 65 waterproof for any environment installation.

UHD Perfect Performance

The LED wall has featured with 10,000:1 contrast, 170° wide view angle, dual calibration, which deliver the uniform & vivid video performance experience.

Longer lifespan with Flip COB

The flip COB technology is lower heating, excellent dissipation, energy-saving, which ensures long lifespan of LED screens.

Seamless Cabinet

High precision CNC cabinet integral processing, module can be adjusted vertically and honrizontally, which ensures a flat and seamless LED wall after cabinet connection.

Fast installation

Standard 27 inch panel equipped with quick connector,location pin and horizontal adjustment design, saving time and labor cost on a 2K, 4K or 8K LED wall installation.

Easy Front or Rear Service

Front installation, front maintenance and rear installation, front maintenance are both available.

Various installation methods

Portable frame, wall mount, hanging, floor-stand installation are all available.

COBit Pro-1.25, 1.25mm fine pitch LED video wall showcase

Pixel Pitch	1.25 mm
LED	COB, 1R1G1B
Pixel Density	640,000
Module Size (mm)	150*168.75
Cabinet Size (mm)	1012 * 150 / 675 * 150 / 337.5 * 150
Cabinet Resolution	810 * 120
Cabinet Thickness	42 mm
Cabinet Weight	2 Kgs per tile
Material	Die-casting Aluminium
Service	Front Access
Brightness (nits)	1,000 / 2,000
Contrast	10,000:1
View angle (H/V°)	170
Drive Mode	Constant current
Grey level	14 Bit
Refresh rate (Hz)	3840
Power Input	AC 100-240V
Average power consump	110 W/sq.m
Max power consump	330 W/sq.m
Life Time (hrs)	100,000
IP Rating (Front/Rear)	IP65 / IP44
Application	Indoor / Semi-outdoor
Operating temperature	-10 to 50℃
Storage temperature	-20 to 60℃
